HI2020 – edge® Multiparameter pH Meter

HI2020 – edge® Multiparameter pH Meter

Hanna Instruments is proud to introduce the world’s most innovative pH meter: edge®.

edge’s groundbreaking design is the culmination of Hanna’s vision, design capabilities, integrated production and world class R&D. The edge meter is only 0.5” thick yet rich in features to accommodate the needs of a vast amount of customers. For those that prefer very simplistic operation there is a basic mode operation with simplified menu and options while for those who require advanced features there is the full featured standard operating mode. The edge HI2020 pH kit can be upgraded at any time with additional probes to measure Conductivity or Dissolved Oxygen.

 Click to download the product’s manual

Hanna Instruments is proud to introduce the world’s most innovative pH meter: edge®.

edge’s groundbreaking design is the culmination of Hanna’s vision, design capabilities, integrated production and world class R&D. The edge meter is only 0.5” thick yet rich in features to accommodate the needs of a vast amount of customers. For those that prefer very simplistic operation there is a basic mode operation with simplified menu and options while for those who require advanced features there is the full featured standard operating mode. The edge HI2020 pH kit can be upgraded at any time with additional probes to measure Conductivity or Dissolved Oxygen.

edge screen size

Large Easy to Read LCD

edge features a 5.5” LCD display that you can clearly view from over 5 meters. The large display and it’s wide 150° viewing angle provide one of the easiest to read LCD’s in the industry.







Capacitive Touch

Capacitive Touch

edge features a capacitive touch keypad that gives a distinctive, modern look. Since the keypad is part of the screen, your buttons can never get clogged with sample residue. The up and down keys move faster when continuously held (ideal for scrolling through numerous logs).





Clear Full Text Readout

Clear Full Text Readout

edge features clear, full text guides displayed on the bottom of the screen. There is no need to decipher scrambled abbreviations or symbols; these helpful messages guide you through every process quickly and easily.

Details

edge® is packed with many cutting edge features to ensure accuracy and usability.

Digital Electrodes

edge electrodes are highly advanced, featuring a built-in microchip that stores calibration information that is automatically retrieved by edge once the electrode is plugged in. These digital electrodes also feature an easy to plug in 3.5 mm connector so you never have to worry about the right angle or aligning pins.

Sensor Check

When used with Hanna’s electrodes equipped with a matching pin, edge constantly checks the impedance of the pH measuring electrode to notify you in real time in the event of glass breakage. During calibration, Sensor Check checks the state of the junction. The reference junction is also evaluated and reported on the display.

.

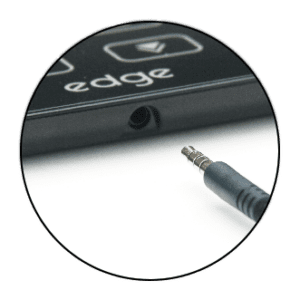

3.5mm Probe Input

3.5 mm Probe Input

Plugging an electrode in has never been simpler, no alignments, no broken pins, just connect the 3.5 mm plug and get started.







edge® is incredibly versatile. It can be used in a variety of ways and in a variety of environments without taking up the space of a traditional benchtop meter.

wall mount

Wall Mount

Using the wall mount cradle (included), edge can be placed on a wall, leaving zero footprint on the benchtop space. The cradle has a built in connector to power edge and charge its batteries. edge’s zero footprint is designed to save you valuable benchtop space.





Cradle

Cradle and Electrode Holder

edge is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the edge securely in place at the optimum viewing angle.







edge® is incredibly thin and weighs only 8.8 oz., has an 8 hour battery life, and dual USB inputs.

usb

Two USB Ports

edge includes one standard USB for exporting data with a flash drive and a second micro USB port for you to connect to a computer for file export and for charging your edge when the cradle is not available.







data logging



Data Logging

edge allows you to store up to 1000 log records of data. Data sets include readings, GLP data, date and time.





basic mode



Two Operating Modes

edge can be used in Extended or Basic Operating Modes. Extended Mode enables all features available while the Basic Mode reduces the amount of features to a very simple operation. For example, in extended mode edge offers 5 point calibration with 2 custom buffers while in basic mode calibration can only be performed to 3 points with 5 pre-programmed buffers.



Specifications

pH Specifications
pH Range-2.000 to 16.000 pH, -2.00 to 16.00 pH, 1000 mV
pH Resolution0.001 pH, 0.01 pH, 0.1 mV
pH Accuracy (@25C/77F)0.2 mV, 0.01 pH, 0.002 pH
pH Calibrationup to 5 points
pH Calibration Buffers1.68, 10.01, 12.45, 4.01, 6.86, 7.01, 9.18, two custom buffers
pH Temperature CompensationATC: -5.0 to 100.0C; 23.0 to 212.0F*
EC Specifications
EC Range0.00 to 29.99 μS/cm, 30.0 to 299.9 μS/cm, 300 to 2999 μS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (absolute EC)**
EC Resolution0.01 μS/cm, 0.1 μS/cm, 1 μS/cm, 0.01 mS/cm, 0.1 mS/cm
EC Accuracy (@25C/77F)±1% of reading (±0.05 μS/cm or 1 digit, whichever is greater)
EC Calibration1 point offset calibration (0.00 μS/cm in air), 1 point slope calibration in EC standard 84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 111.8 mS/cm
EC Temperature CompensationATC (0.0 to 100.0C; 32.0 to 212.0 F), NoTC
TDS Specifications
TDS Range0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150 to 1499 ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS)**, with 0.80 conversion factor
TDS Resolution0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L
TDS Accuracy (@25C/77F)1% of reading (0.03 ppm or 1 digit, whichever is greater)
TDS Calibrationthrough EC calibration
TDS Conversion Factor0.40 to 0.80
Salinity Specifications
Salinity Range0.0 to 400.0% NaCl, 2.00 to 42.00 PSU, 0.01 to 42.00 PSU, 0.0 to 80.0 g/L*
Salinity Resolution0.1% NaCl, 0.01 PSU, 0.01 g/L
Salinity Accuracy (@25C/77F)1% of reading
Salinity Calibration1 point with HI 7037L 100% NaCl sea water standard (other scales through EC calibration)
DO Specifications
DO Range0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation
DO Resolution0.01 ppm, 0.1% saturation
DO Accuracy1 digit, 1.5% of reading
DO Calibrationone or two points at 0% (HI 7040 solution) and 100% (in air)
DO Temperature CompensationATC: 0 to 50 C; 32.0 to 122.0 F
Salinity Compenstaion0 to 40 g/L (with 1 g/L resolution)
DO Altitude Compensation-500 to 4000 m (with 100 m resolution)
Temperature Specifications
Temperature Range-20.0 to 120.0 C, -4.0 to 248.0 F
Temperature Resolution0.1 C, 0.1 F
Temperature Accuracy0.5 C, 1.0 F
Additional Specifications
pH Electrode DiagnosticsGlass and reference junction diagnostics ( HI 11311 & HI 12301 only), out of calibration range , probe condition, response time
Loggingup to 1000*** records organized in: Manual log-on-demand (Max. 200 logs), Manual log-on-stability (Max. 200 logs), Interval logging *** (Max. 600 samples; 100 lots)
Connectivity1 micro USB port for charging and PC connectivity, 1 USB port for storage
Environment0 to 50C (32 to 122F), RH max 95% non-condensing
Battery Type/LifeBuilt-in rechargeable battery with up to 8 hours of continuous use
Power Supply5 VDC adapter (included)
Dimensions202 x 140 x 12.7mm (8” x 5.5” x 0.5”)
Weight250 g (8.82 oz)
Ordering InformationHI2020 pH kit includes: HI11310 Glass body, refillable pH electrode with temperature sensor, 2 sachets of pH 4 buffer solutions, 2 sachets of pH 7 buffer solutions, 2 sachets of pH 10 buffer solutions, electrode cleaning solutions,USB cable, benchtop docking station with electrode holder, wall mount cradle, 5 VDC power adapter, instruction manual and quality certificate.
Notes* temperature limits will be reduced to actual probe/sensor limits
** with temperature compensation function disabled
*** for standard mode only
